Seamless high pressure Aluminum co2 gas cylinder for beverage and food industry.

TAIAN’s lightweight, durable and corrosion resistant CO2 cylinders are the optimal choice for commercial beverage dispensing from soft drinks to craft beers.

All CO2 cylinders are produced from high quality sourced raw materials

On-site DOT (IIA) Inspections – dimensional, visual, hydrostatic, tensile & burst testing

Serialization – complete traceability of cylinder production batch, test reports and raw material

Personalized customer support – technical inquiries, new product development, logistics

Customizable colors, labels and graphics.

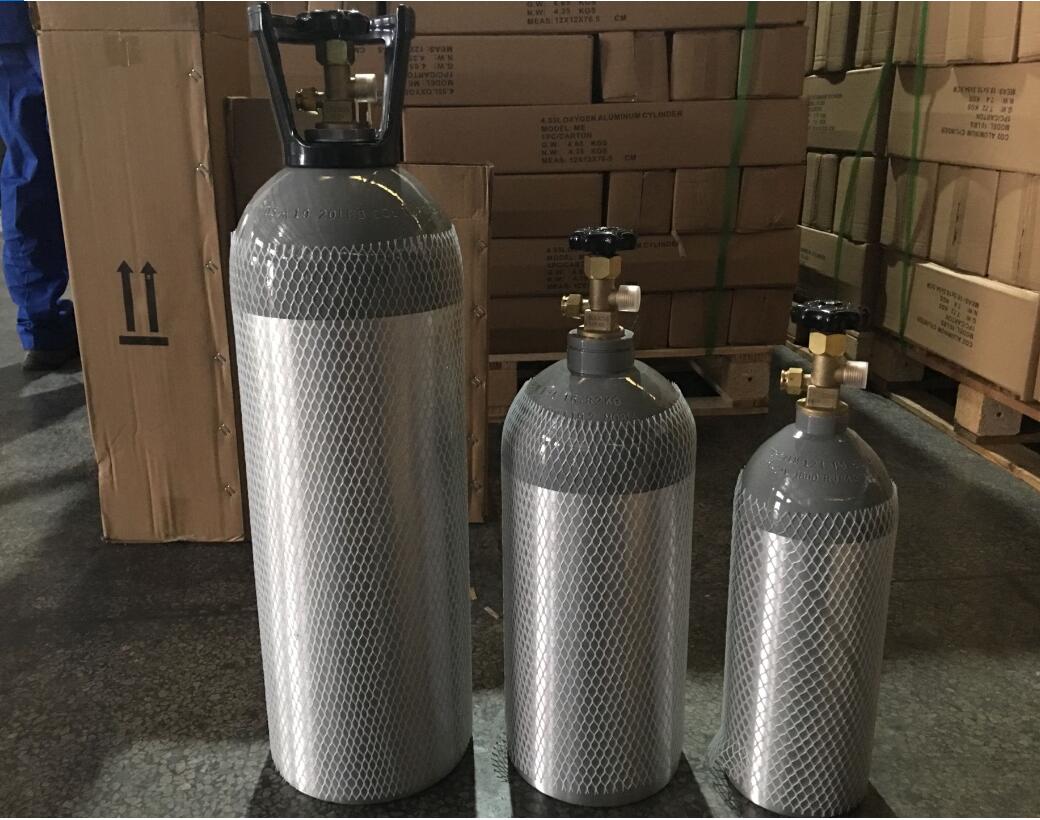

2.5LBS ,5LBS,10LBS,15LBS,20LBS,35LBS, 50LBS aluminum co2 gas cylinder is the common standard size in the aluminum cylinder which used for beverage and soda water industry.

5LBS co2 cylinder specification as bellow:

Water capacity: 3.35L

Diameter: 133mm

Working pressure: 1800psi/124bar

Test pressure:3000psi/207bar

Standard : DOT3AL /TC-3ALM

Co2 gas capacity:5lbs

Available market: Main for south and north American countries, also some Asia countries .

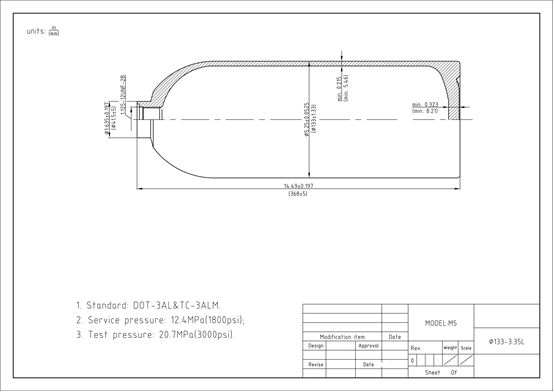

Reference drawing as bellow:
