67.5L/68L 45kgs seamless steel co2 gas cylinder for fire extinguish system
The 68L carbon dioxide cylinder has a large capacity and a high working pressure, and is suitable for occasions where a large amount of carbon dioxide is required, especially in various fire extinguish system it is necessary and popular.
Specification :
Water capacity:67.5L/68L
Available water capacity: 40L-80L
Diameter:267mm
Working pressure: 150bar/2130psi
Test pressure:250bar/3550psi
Standard: DOT3AA / ISO9809-1 with GL rules for the classification of ships/EN 1964-1/ISO9809-3
Material: 37Mn/30CrMo
Available market: all over the world

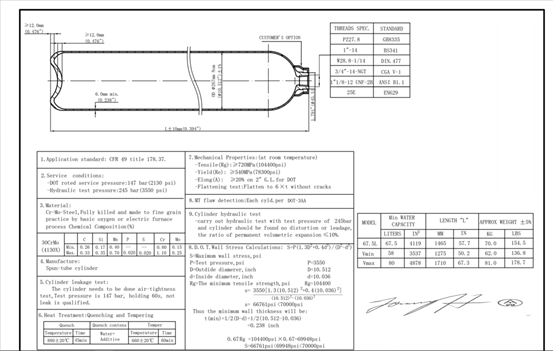

Drawing reference as bellow:
